| INALAMBRICO |
| Estándares | Wi-Fi 5 |
| IEEE 802.11ac/n/a 5 GHz |
| IEEE 802.11n/b/g 2.4 GHz |
| Velocidad WiFi | AC1200 |
| 5 GHz: 867 Mbps (802.11ac) |
| 2.4 GHz: 300 Mbps (802.11n) |
| Rango WiFi | 3 Bedroom Houses |
| |
| 4× Fixed High-Performance Antennas |
| Multiple antennas form a signal-boosting array to cover more directions and large areas |
| |

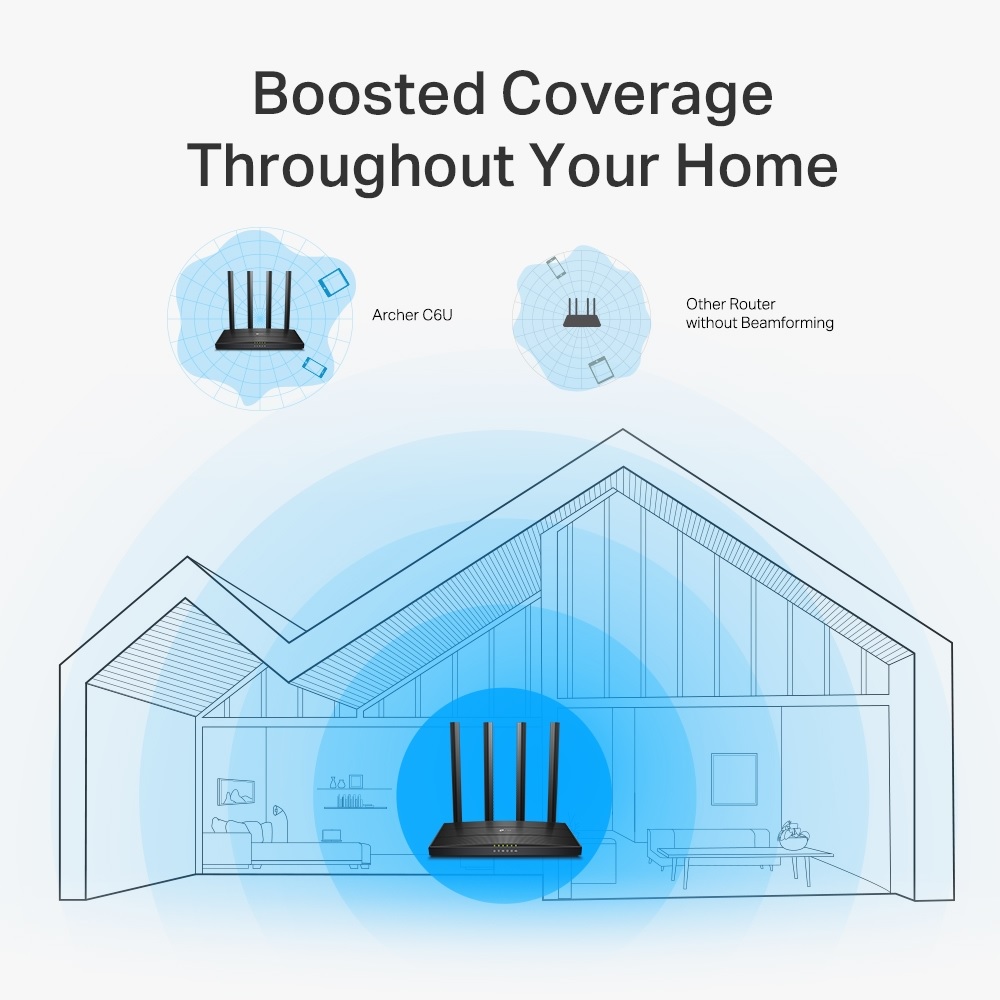

| Beamforming |
| Concentrates wireless signal strength towards clients to expand WiFi range |
| Capacidad WiFi | Medium |
| |
| Dual-Band |
| Allocate devices to different bands for optimal performance |
| |
| MU-MIMO |
| Simultaneously communicates with multiple MU-MIMO clients |
| |
| Airtime Fairness |
| Improves network efficiency by limiting excessive occupation |
| Modos de trabajo | Router Mode |
| Access Point Mode |
| HARDWARE |
| Procesador | Dual-Core CPU |

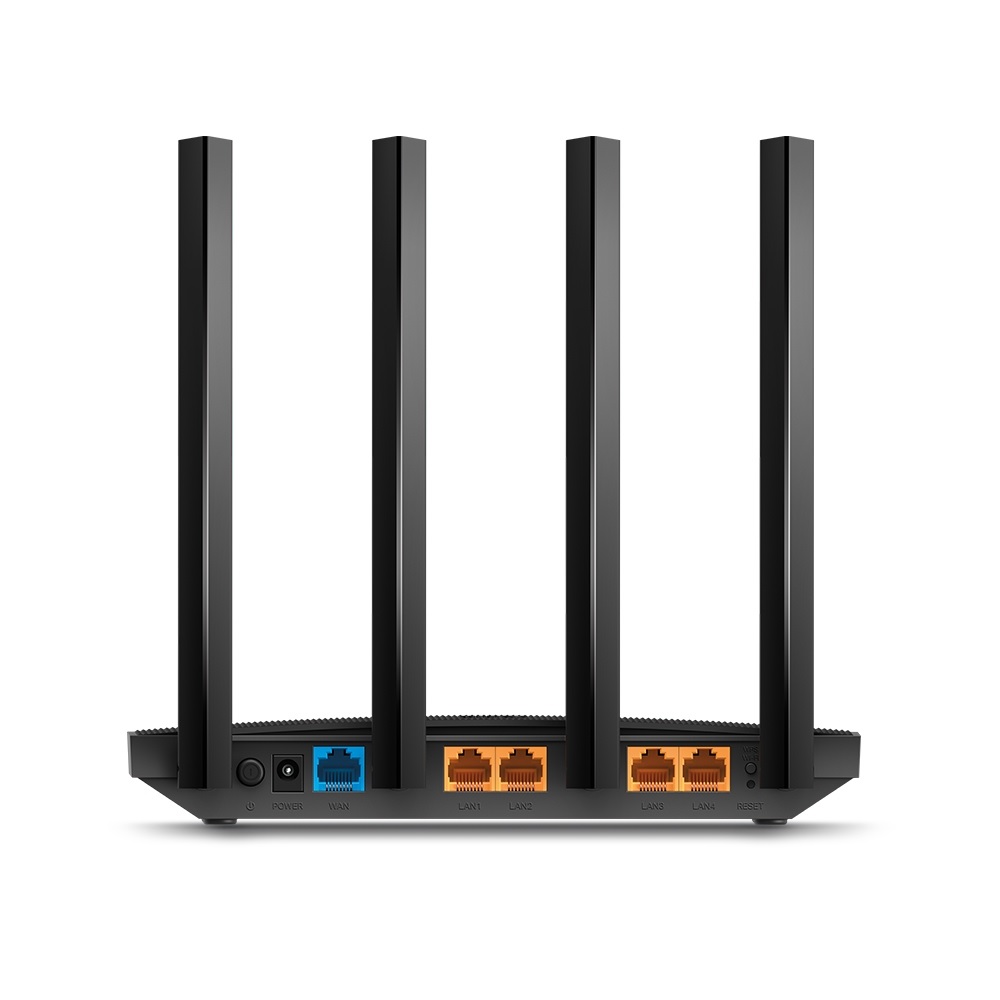

| Puertos ethernet | 1× Gigabit WAN Port |
| 4× Gigabit LAN Ports |

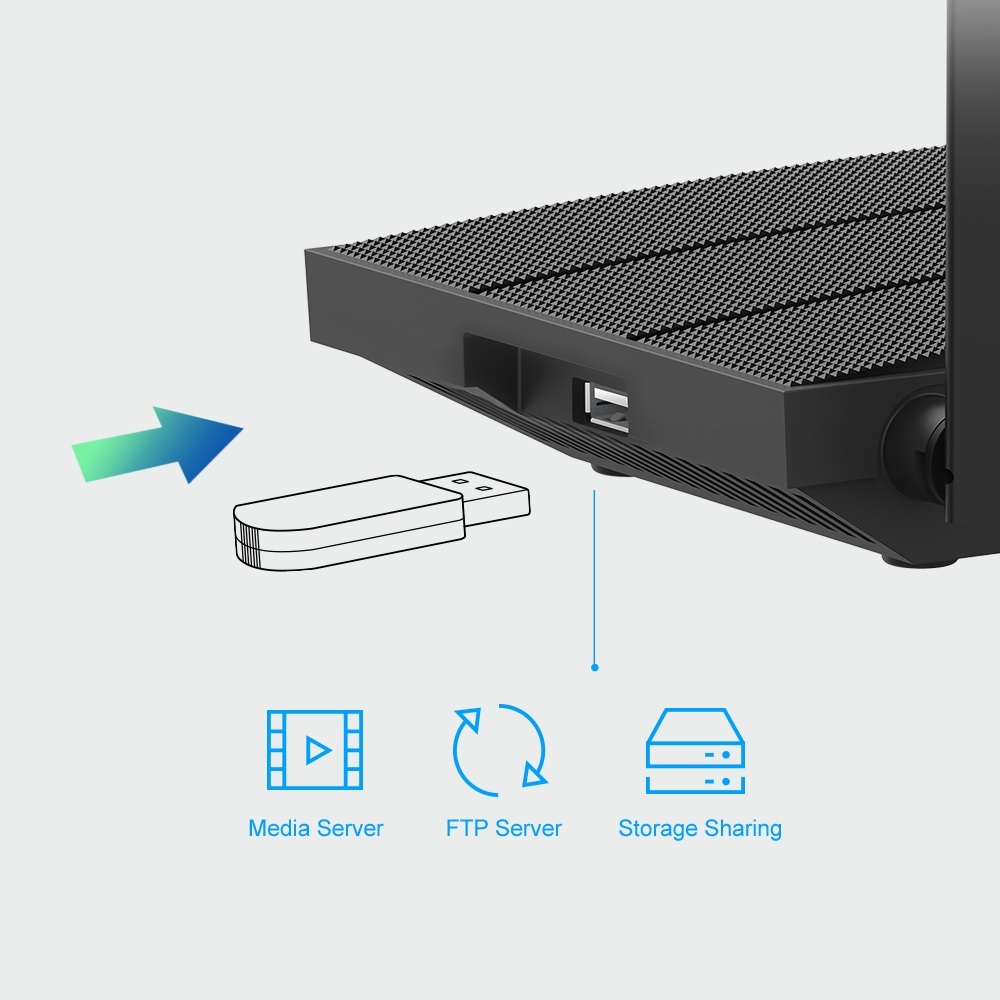

| Soporte USB | 1× USB 2.0 Port |
| |
| Supported Partition Formats: |
| NTFS, exFAT, HFS+, FAT32 |
| |
| Supported Functions: |
| FTP Server |
| Media Server |
| Samba Server |
| Botones | WPS/Wi-Fi Button |
| Power On/Off Button |
| Reset Button |
| Energía | 12 V ⎓ 1 A |
| SEGURIDAD |
| Cifrado WiFi | WEP |
| WPA |
| WPA2 |
| WPA/WPA2-Enterprise (802.1x) |
| Seguridad de la red | SPI Firewall |
| Access Control |
| IP & MAC Binding |
| Application Layer Gateway |
| Red de invitados | 1× 5 GHz Guest Network |
| 1× 2.4 GHz Guest Network |
| Servidor VPN | OpenVPN |
| PPTP |
| SOFTWARE |
| Protocolos | IPv4 |
| IPv6 |
| OneMesh™ | OneMesh™ Supported |
| Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| Learn More> |
| All OneMesh Products> |
| Controles parentales | URL Filtering |
| Time Controls |
| Tipos de WAN | Dynamic IP |
| Static IP |
| PPPoE |
| PPTP |
| L2TP |
| Calidad de servicio | QoS by Device |
| Cloud Service | OTA Firmware Upgrade |
| TP-Link ID |
| DDNS |
| NAT Forwarding | Virtual Servers |
| Port Forwarding |
| Port Triggering |
| DMZ |
| UPnP |
| IPTV | IGMP Proxy |
| IGMP Snooping |
| Bridge |
| Tag VLAN |
| DHCP | Address Reservation |
| DHCP Client List |
| Server |
| DDNS | TP-Link |
| NO-IP |
| DynDNS |
| Gestión | Tether App |
| Webpage |
| Check Web Emulator> |
| FÍSICO |
| Dimensiones (Al x An x Pr) | 8.5 × 4.6 × 1.2 in |
| (215 × 117 × 32 mm) |
| contenidos del paquete | Wi-Fi Router Archer C6U |
| Power Adapter |
| RJ45 Ethernet Cable |
| Quick Installation Guide |
| OTRO |
| Requisitos del sistema | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| |
| Cable or DSL Modem (if needed) |
| |
| Subscription with an internet service provider (for internet access) |
| Certificaciones | FCC, CE, RoHS |
| Ambiente | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
| DATOS DE PRUEBA |
| Potencia de transmisión WiFi | CE EIRP: |
| <20dBm(2.4GHz) |
| <23dBm(5GHz) |
| FCC: |
| <30dBm(2.4GHz & 5GHz) |
| Sensibilidad de recepción WiFi | 5GHz: |
| 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； |
| 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; |
| 11ac HT80 mcs9:-62dBm; |
| 2.4GHz: |
| 11g 54Mbps:-78dBm; |
| 11n HT20 mcs7:-74dBm; |
| 11n HT40 mcs7:-71dbm |
