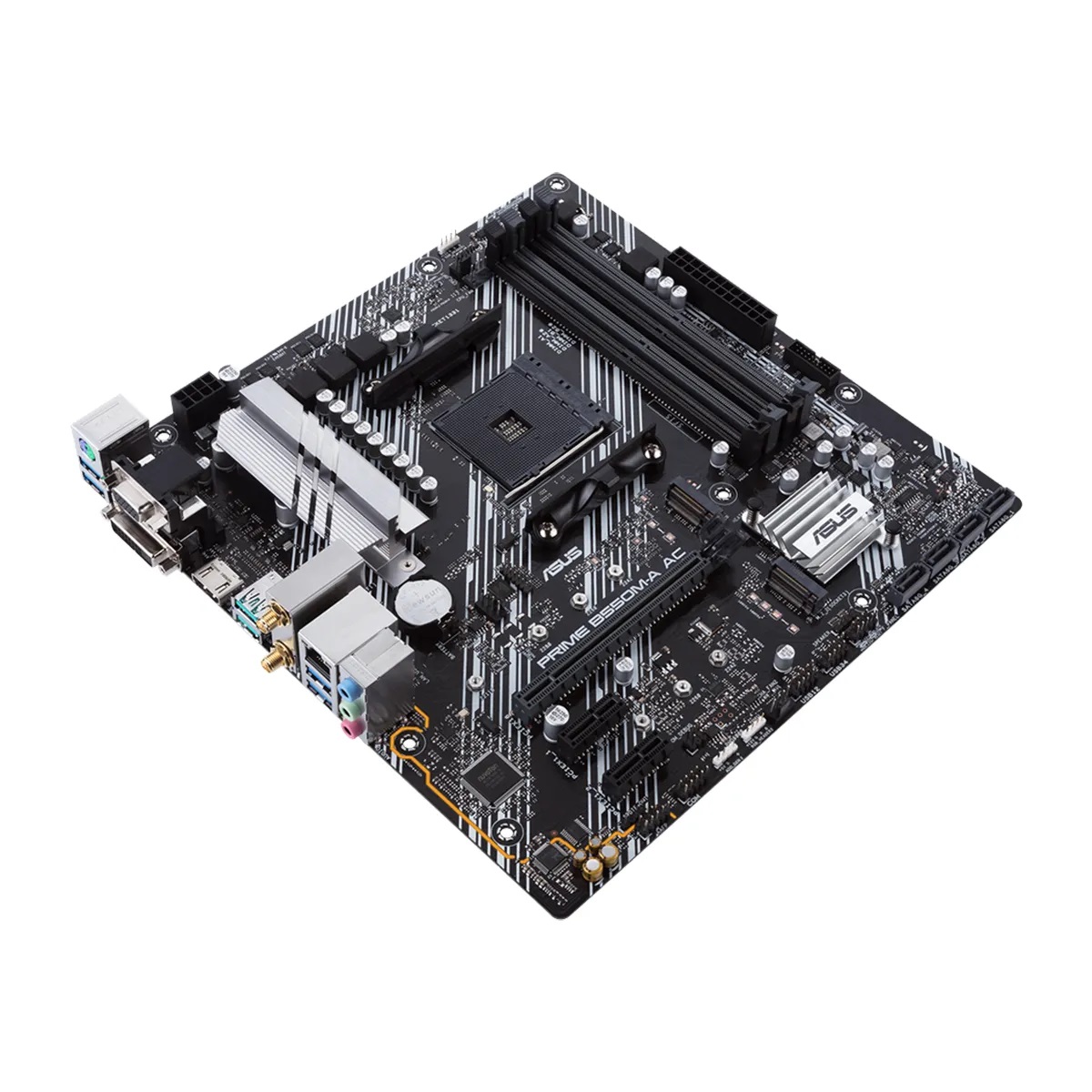

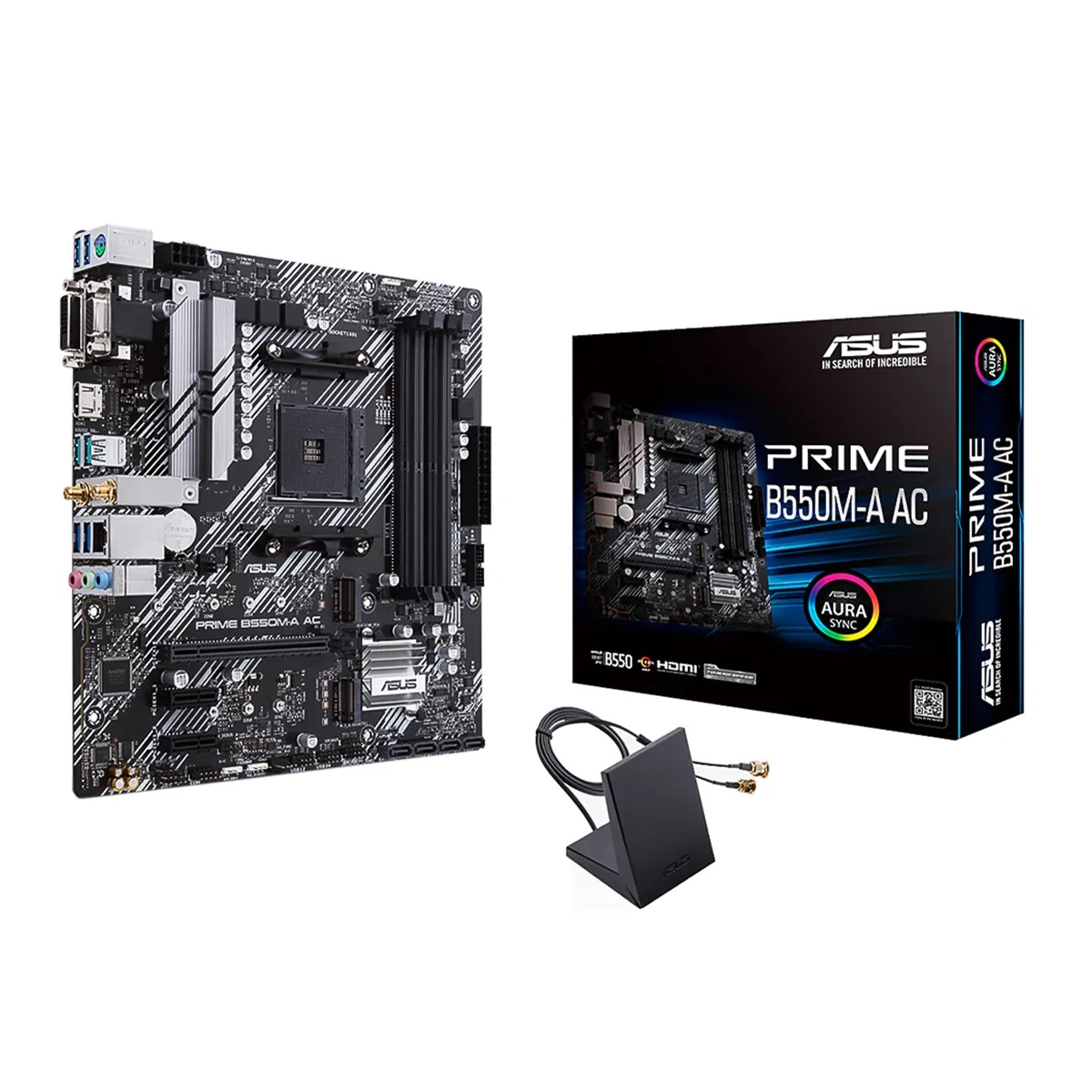

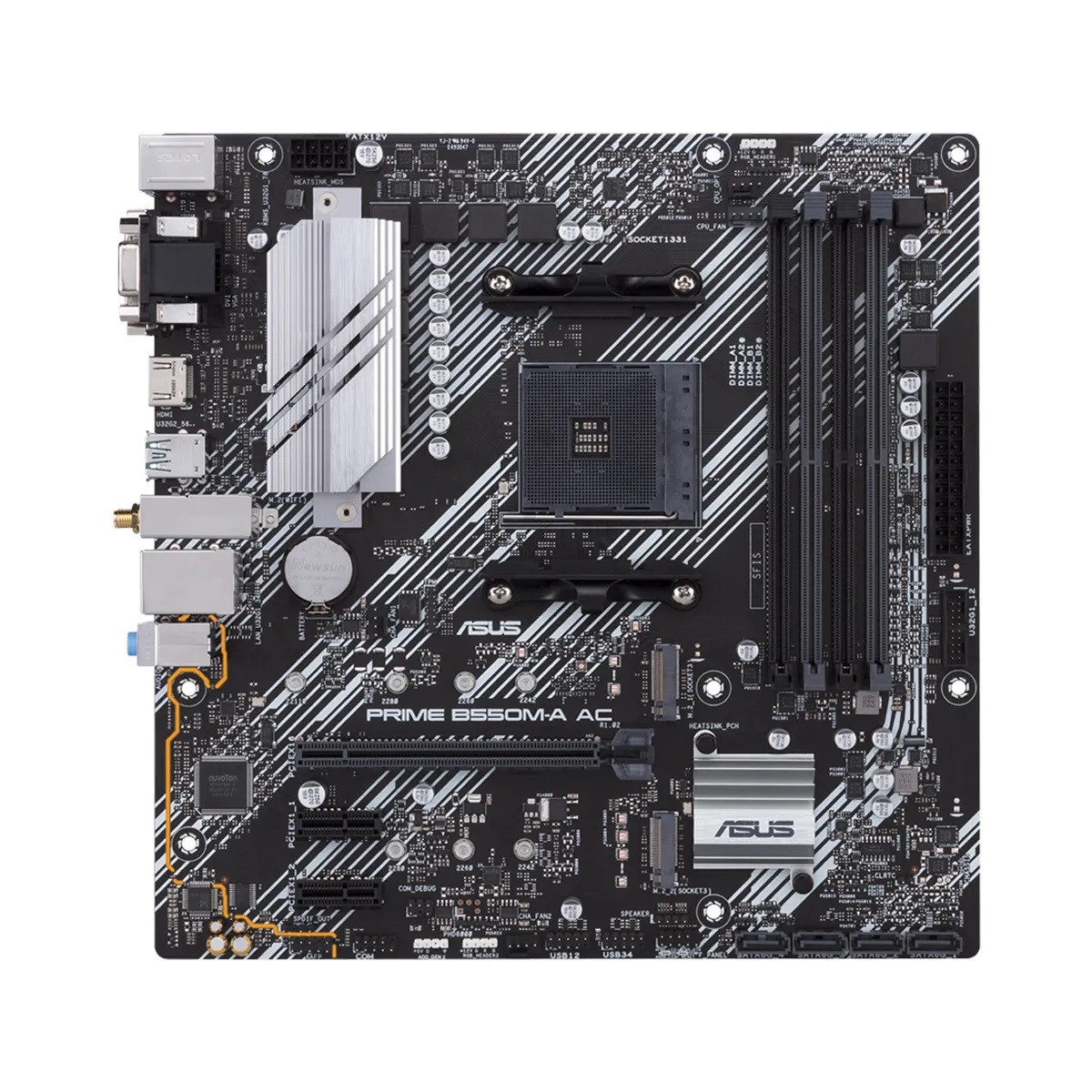

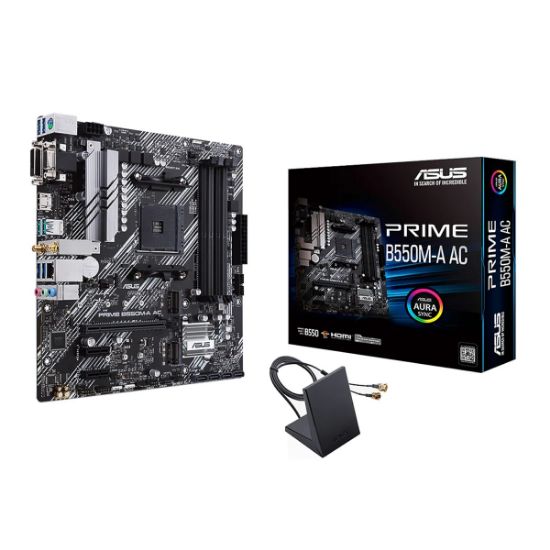

MAINBOARD ASUS PRIME B550M-A AC AMD AM4 RYZEN SERIE 3000 - 5000 4X DDR4 WIFI ATX

Manufacturer: ASUS
SKU: ASUS PRIME B550M-A AC
$139.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

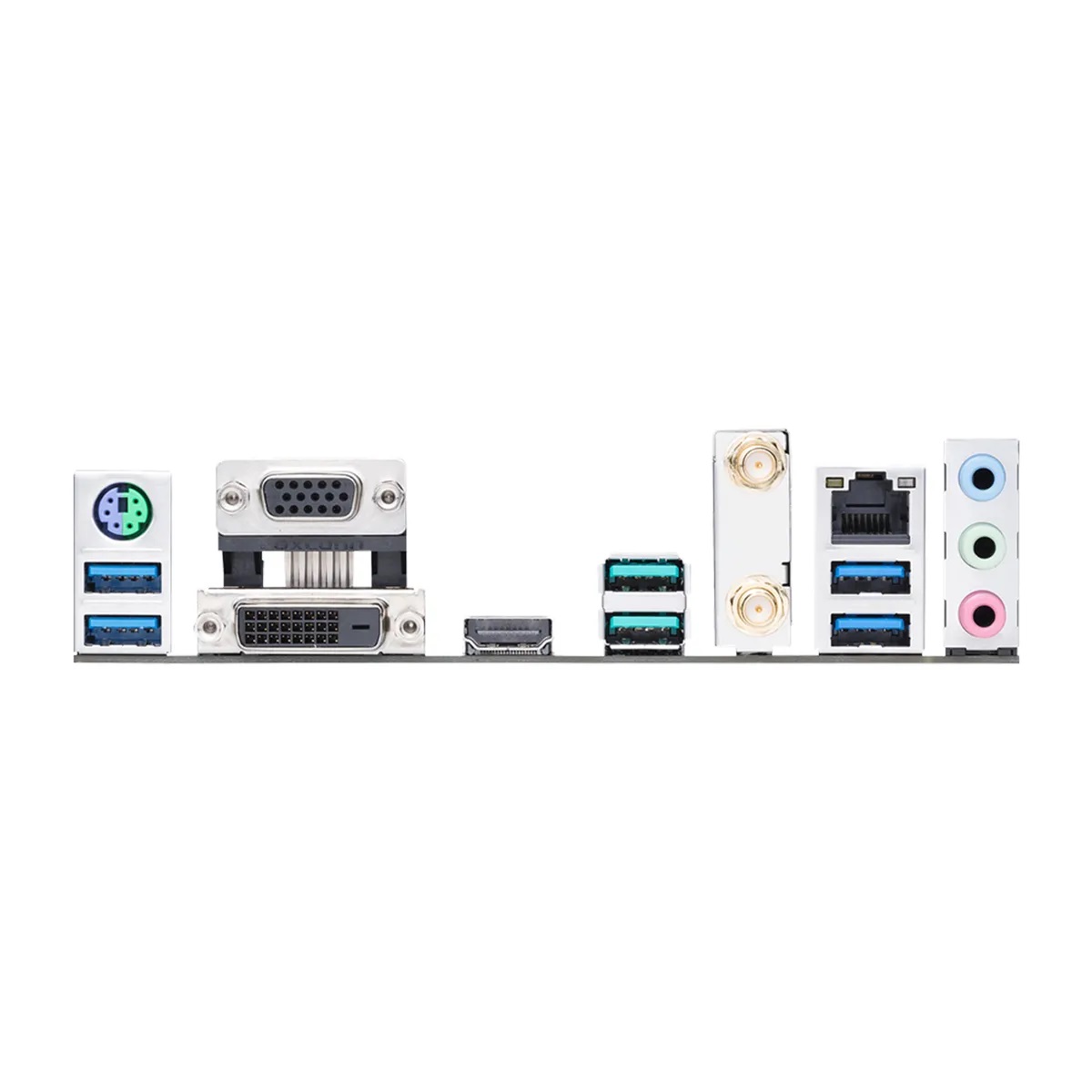

  • PS/2

  • 2 x USB 3.2 Gen 1

  • DVI-D

  • D-Sub

  • HDMI

  • 2 x USB 3.2 Gen 2

  • 802.11ac Wi-Fi

  • Realtek LAN

  • 2 x USB 3.2 Gen 1

  • 3 x Jacks de Audio

  • PCIe 4.0 x16
    ASUS SafeSlot Core

  • Características de audio
    ● Diseño iluminado por LED
    ● Blindaje de audio
    ● Capacitores
    premium japoneses
    ● Capas PCB
    dediacadas al audio

  • DIGI+ VRM & EPU

  • Soporte DDR4

  • Socket AMD AM4 para porcesadores Ryzen™ Series 5000, 4000 G y 3000

  • 2 x USB 3.2 Gen 1 frontales

  • Soporte M.2 64Gb/s
    PCIe 4.0 x4 & modo SATA

  • AMD B550 Chipset

  • Soporte M.2 32Gb/s
    PCIe 3.0 x4 & modo SATA

  • 4 x SATA 6Gb/s

  • 4 x USB 2.0 frontal

  • 2 x Puertos AURA RGB

  • Puerto direccionambre Gen 2

La serie ASUS Prime está diseñada por expertos para liberar todo el potencial de la plataforma AMD Ryzen de tercera generación. Con un diseño de energía robusto, soluciones de enfriamiento integrales y opciones de ajuste inteligentes, las tarjetas madre de la serie Prime B550 brindan a los usuarios diarios y a los constructores de PC DIY una gama de opciones de ajuste de rendimiento a través de funciones de software y firmware intuitivos.

Personaliza a tu manera

Los controles integrales forman la base de la serie ASUS Prime. La tarjeta madre Prime B550 incluye herramientas flexibles para ajustar todos los aspectos de su sistema, lo que te permite ajustar la configuración de rendimiento para que se adapte perfectamente a tu forma de trabajar, maximizando tu productividad.

  • Control Inteligente







CPU
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors *
* Refer to www.asus.com for CPU support list
Chipset
AMD B550
Memoria
4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Gráficos
1  x D-Sub
1  x DVI-D
1  x HDMI 2.1(4K@60HZ)
Slots de Expansión
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 (x16 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1
Almacenamiento
Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Realtek RTL8111H 1Gb Ethernet
Datos de redes inlámbricas
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports PCIe interface
Bluetooth
Bluetooth® 5.0
Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.


CZ3  12/23
