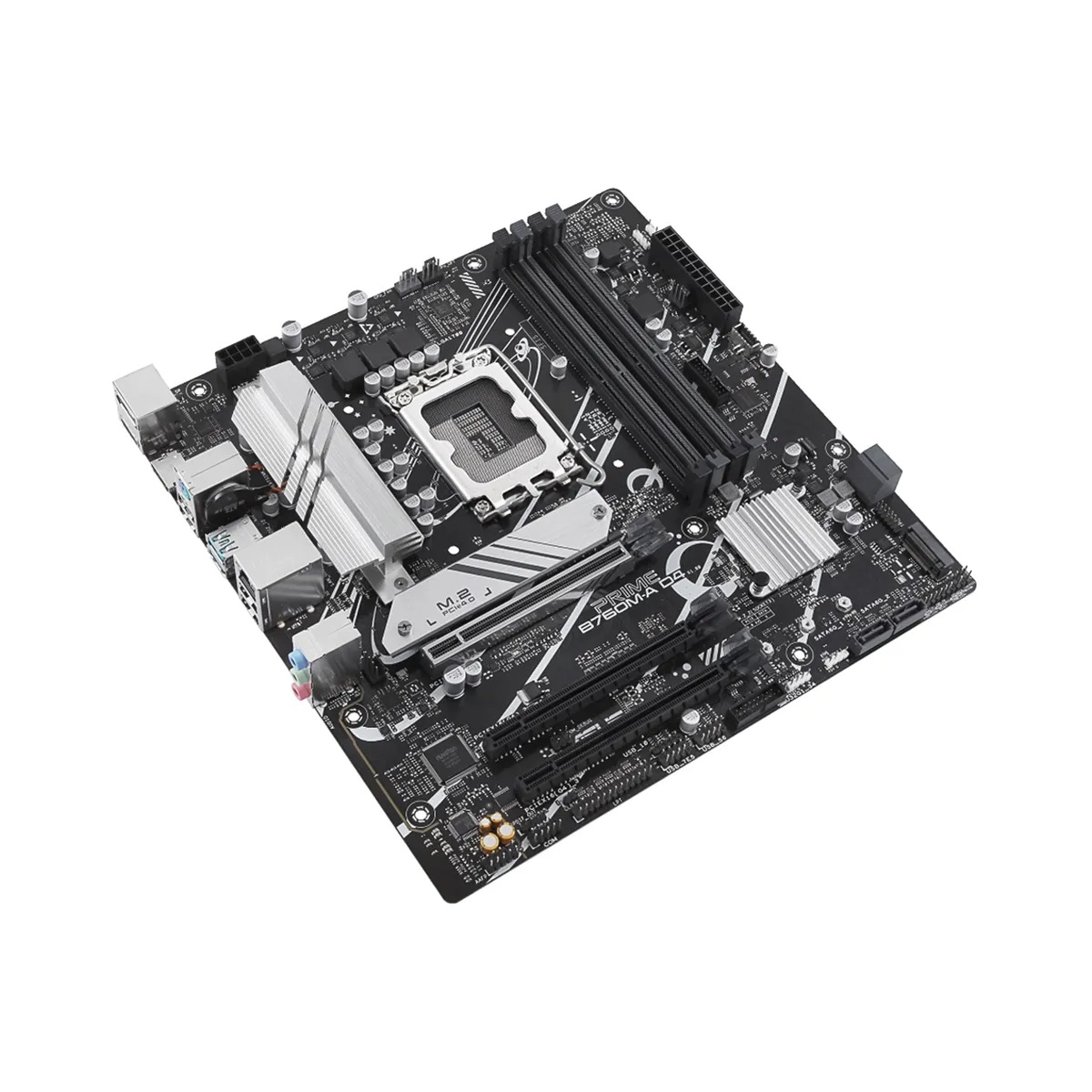

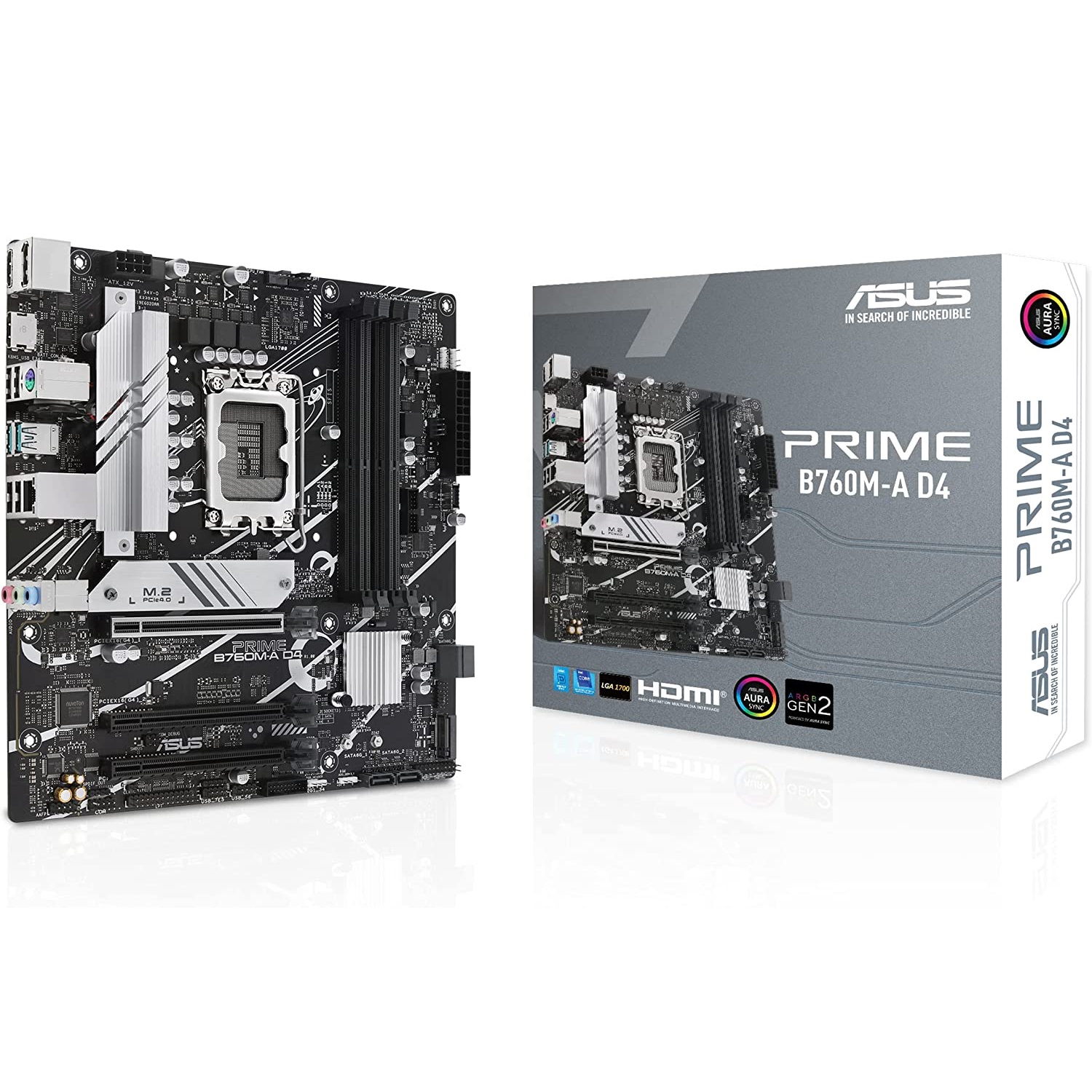

MAINBOARD ASUS PRIME B760M-A D4 SOCKET LGA1700 12VA Y 13VA GEN

Manufacturer: ASUS
SKU: PRIME B760M-A D4
$175.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

B760M-A D4



Las motherboards de la serie Prime de ASUS están diseñadas por expertos para liberar todo el potencial de los procesadores Intel® Core™ de 13.ª generación. La PRIME B760M-A D4 cuenta con un diseño de alimentación sólido, soluciones de refrigeración completas y opciones de ajuste inteligente. Esta motherboard ofrece a los usuarios y amantes de los ordenadores a medida una amplia gama de optimizaciones de rendimiento a través de funciones de firmware y software intuitivo.


icon-intel



Todas las especificaciones de la motherboard PRIME B760M-A D4Todas las especificaciones de la motherboard PRIME B760M-A D4
  • 1 Display Port
  • 2 puertos HDMI®
  • Puerto PS/2
  • 2 puertos USB 2.0 (tipo A)
  • 2 puertos USB 3.2 Gen 2 (tipo A)
  • 2 puertos USB 2.0 (tipo A)
  • Ethernet Realtek de 2.5 GB
  • 3 tomas de audio
  • Puertos de expansión
    • 1 PCIe 4.0 x16 (modo máx. x16)
    SafeSlot Core+
    • 1 PCIe 4.0 x16 (modo x4)
    • 1 PCIe 4.0 x16 (modo x1)
  • 1 puerto LPT
  • 2 puertos direccionables Gen 2
  • Compatibilidad con DDR4
    • Dos canales
    • OptiMem II
  • Socket Intel® LGA 1700: Preparado para procesadores Intel® de 12.ª y 13.ª generación
  • 1 USB 3.2 Gen 1 Type-C®®
  • 1 puerto USB 3.2 Gen 1
  • 2 puertos M.2
    • 1 M.2 2280 (modo PCIe 4.0 x4)
    • 1 M.2 2280 (modo PCIe 4.0 x4)
  • 1 puerto direccionable Gen 2
  • 1 cabecera Aura RGB
  • 1 puerto USB 3.2 Gen 1





CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
*Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics
1 x DisplayPort**
2 x HDMI® ports***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
